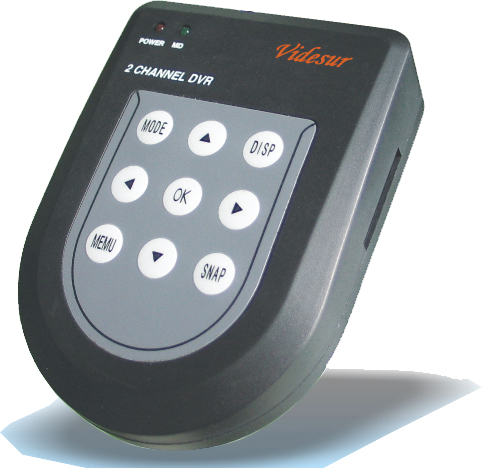

VSD2CH-RTSD
2 CH Real-time Mini DVR With Motion Detection
New Support Up To 16GB Version
Main Features
* DIY installation and operation
* Real time display and playback
* Built-in SD card slot, support up to 16GB memory capacity
* With a 2GB SD card, more than 30,000 photos or 3000 10-second video clips (about 9 hours totally) can be made
* Automatic snapshot (JPEG) / recording (AVI video) when motion detected
* Snapshot / recording setup options
Specification
Video input format |
NTSC/PAL |
Video output (CVBS) |
1 channel |
Video input (CVBS) |
2 channels |
Display frame rate |
NTSC: 30fps; PAL: 25fps; mode (sequence): Full/PIP |
Recording frame rate |
NTSC: 15fps; PAL: 12fps |
Recording mode |
Motion detection |
Display resolution |
NTSC: 720*480; PAL: 720*576 |
Recording resolution |
AVI: video: 320*240; Photo: 640*480 |
OSD |
English |
Back-up (archive device) |
SD card (up to 16GB) |
Search function |
Mode: Date & Time; F/Screen: Yes |
Motion detection |
Yes (Internal) |
Net weight |
108g |
Dimension |
115mm*80mm*31mm |

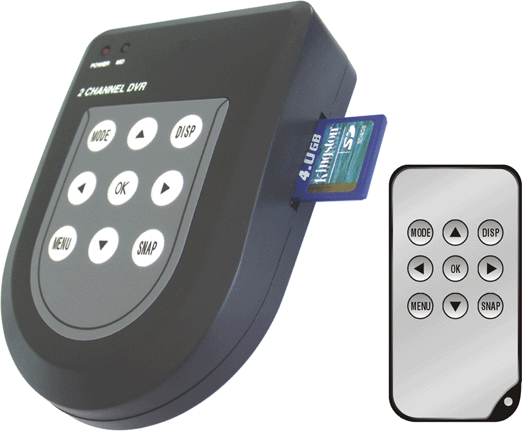

Remote Control |
Yes |
|
